Eriez Wirbelstromabscheider

Entfernt Nichteisenmetalle aus Kunststoffen, Glasscherben, Elektronikschrott, PKW-Schrott (ASR), Verbrennungsasche, verbrauchtem Gießereisand, Hausmüll (MSW), gemischten Wertstoffen, städtischen Holzabfällen und Metallmischungen



Eddy Current Separators



>>


Eriez Wirbelstromabscheider

Im Jahre 1969 ließ Eriez Magnetics sowohl permanentmagnetische als auch elektromagnetische Wirbelstromabscheider patentieren. Diese leistungsstarken Systeme verfügen über verbesserte Permanentmagnetkreise mit Neodym-Magnetmaterial, für stärkere Wirbelstromabscheider und eine verbesserte Trennung von Nichteisenmaterialen.

In operation, the non–ferrous separator utilizes permanent rare earth magnets to induce eddy currents into metallic particles. This produces repelling forces which separate the metallics from non–metallics, providing a cleaner product for further processing. Removal of the metallics is selective and product loss is minimized.

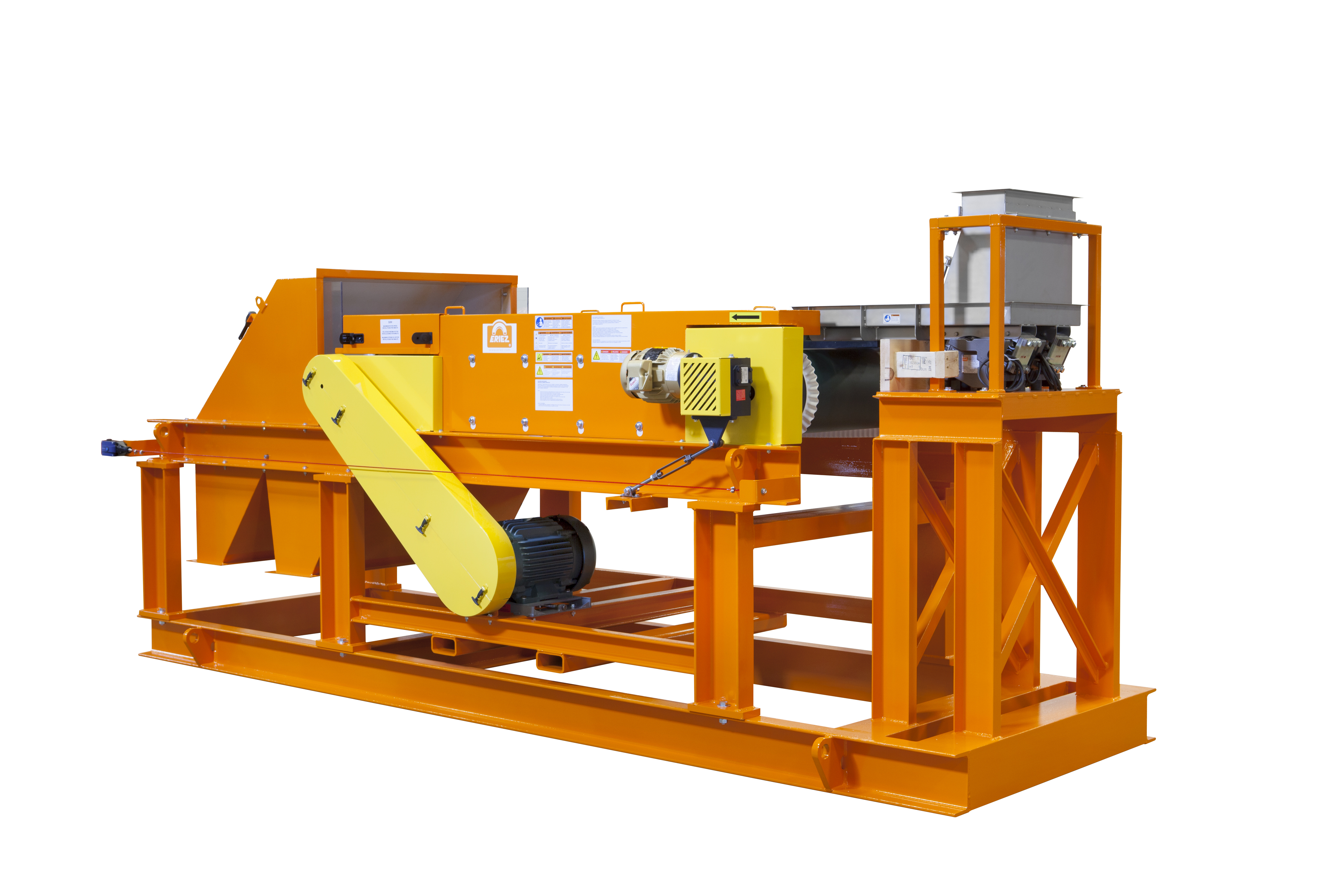

The non–ferrous metallic separator consists of an external drum, an internal permanent magnetic rotor, a drive, and belt conveyor. The external drum shell of non–metallic composite material rotates at conventional belt conveyor speed. The internal Rare Earth alternating polarity rotor turns at much higher RPM than the external shell.

Through the induction of eddy currents and the resulting repelling forces, the alternating magnetic field selectively repels the non–ferrous metals and physically separates them from other materials with minimum product loss.

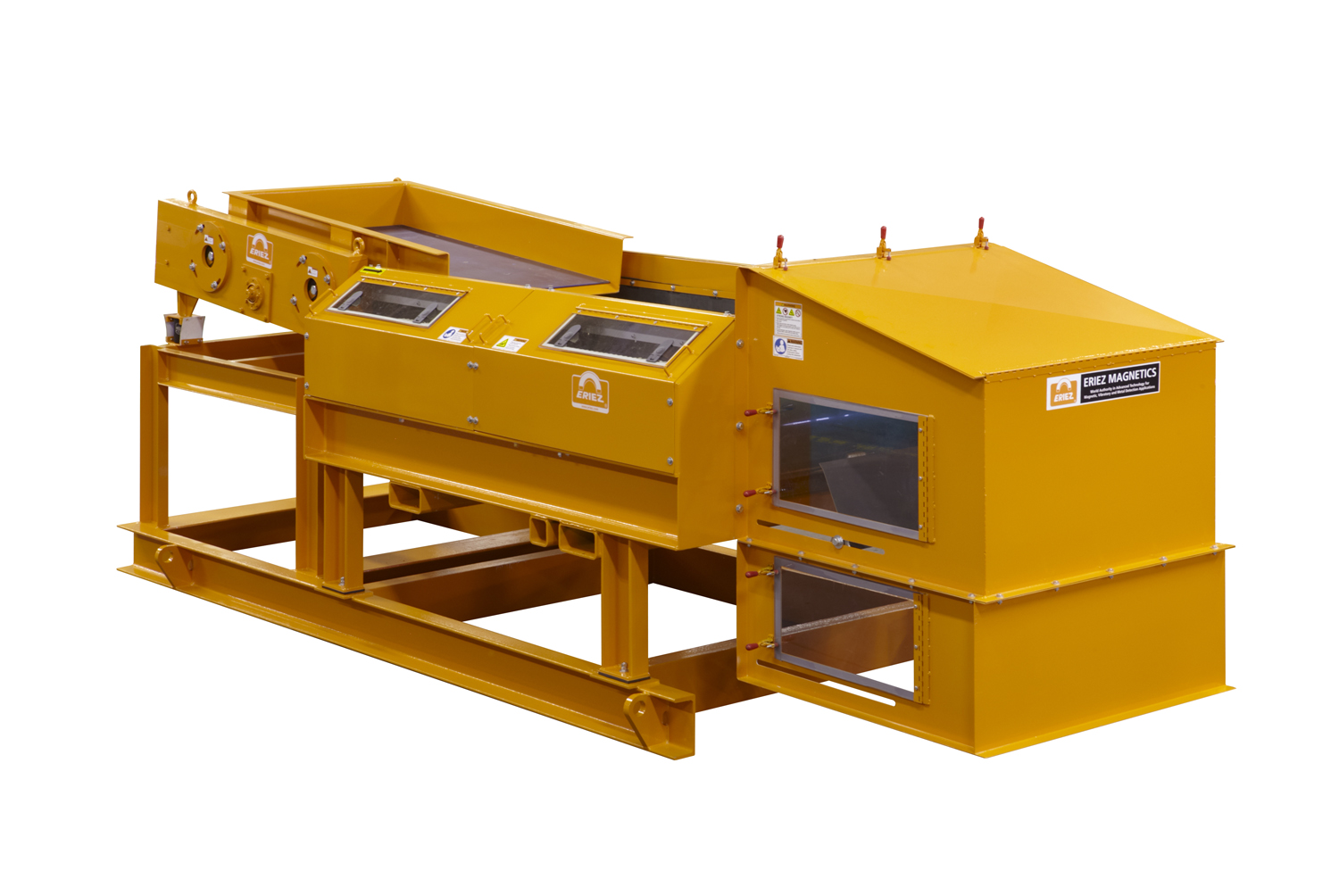

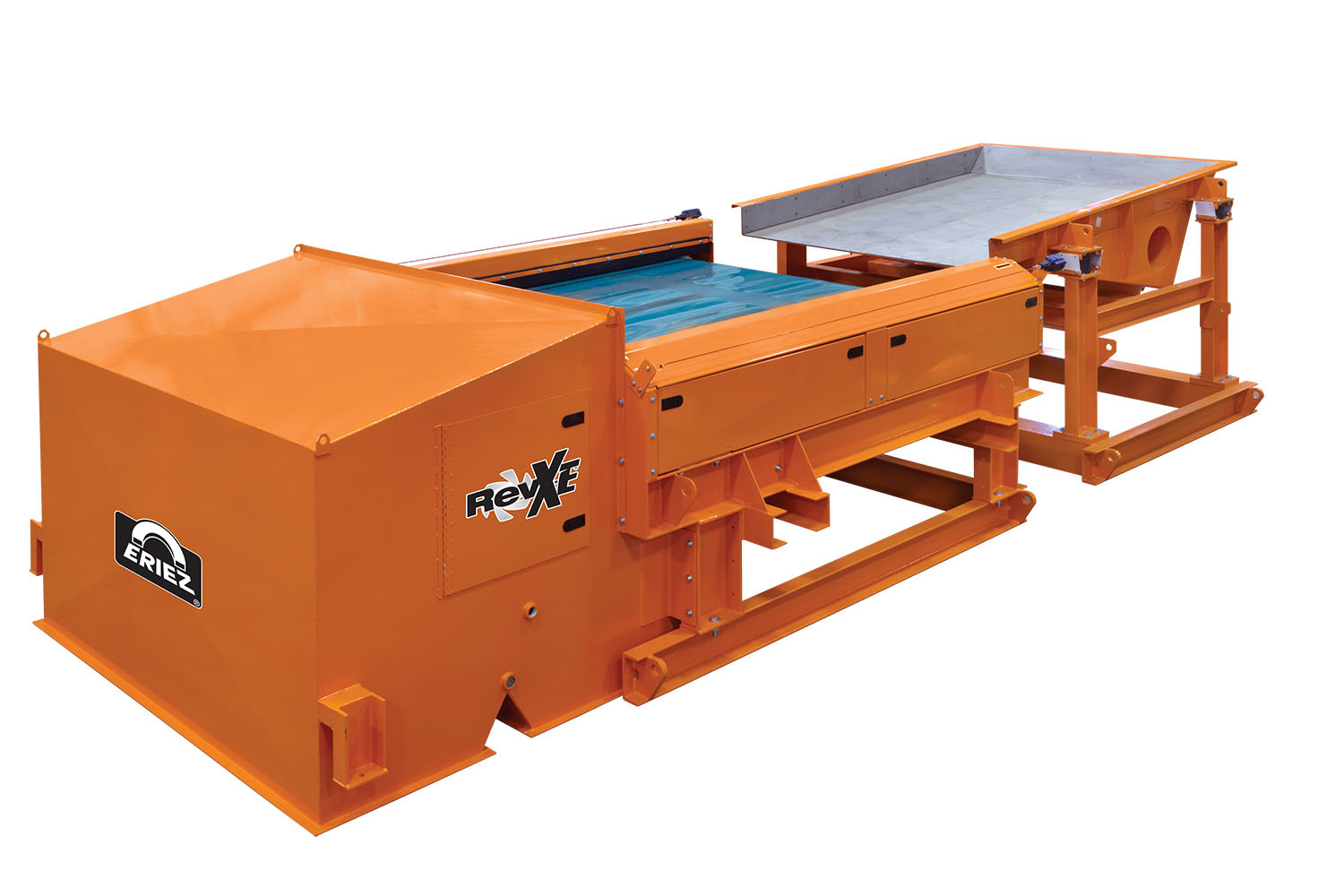

RevX-E® Wirbelstromabscheider

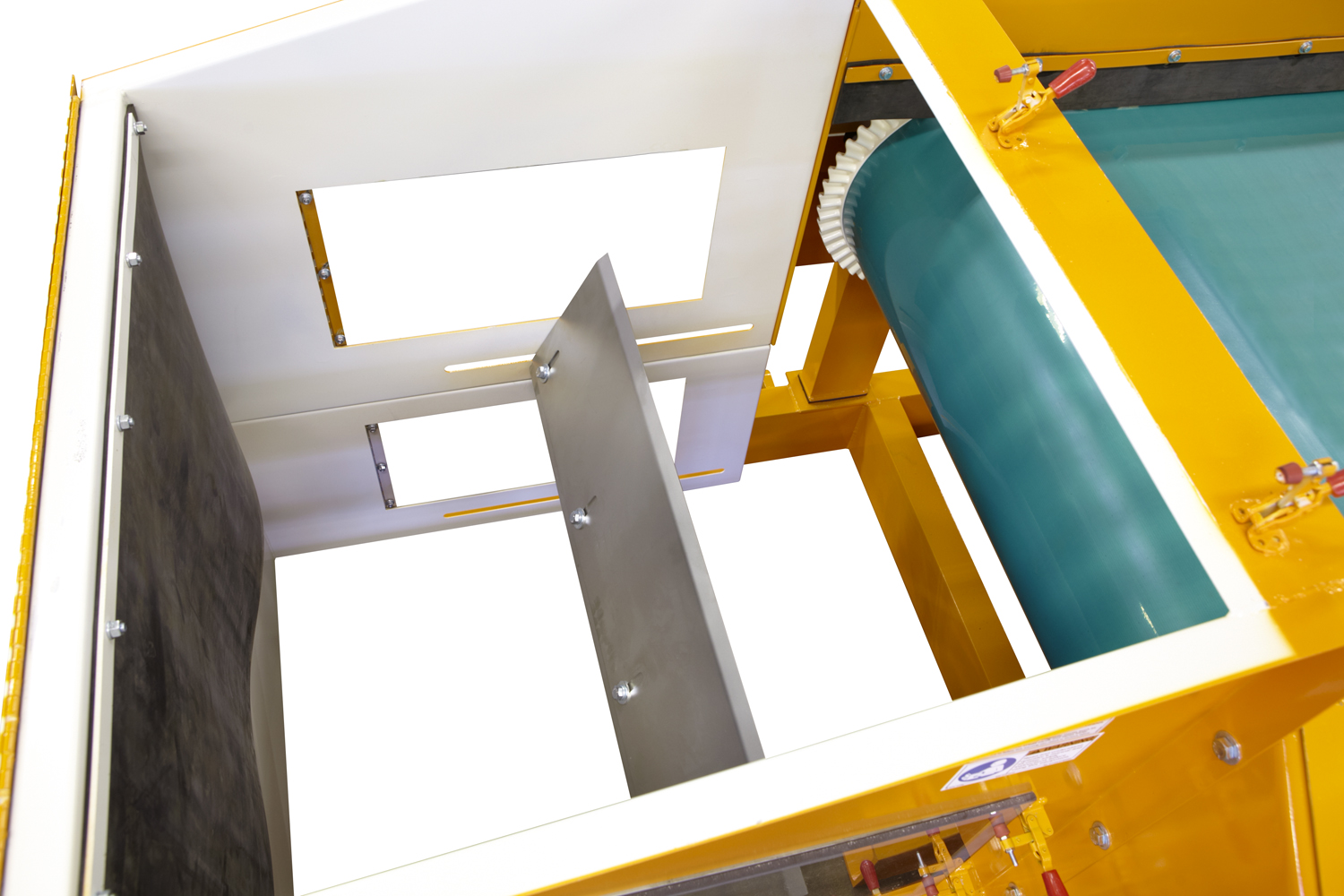

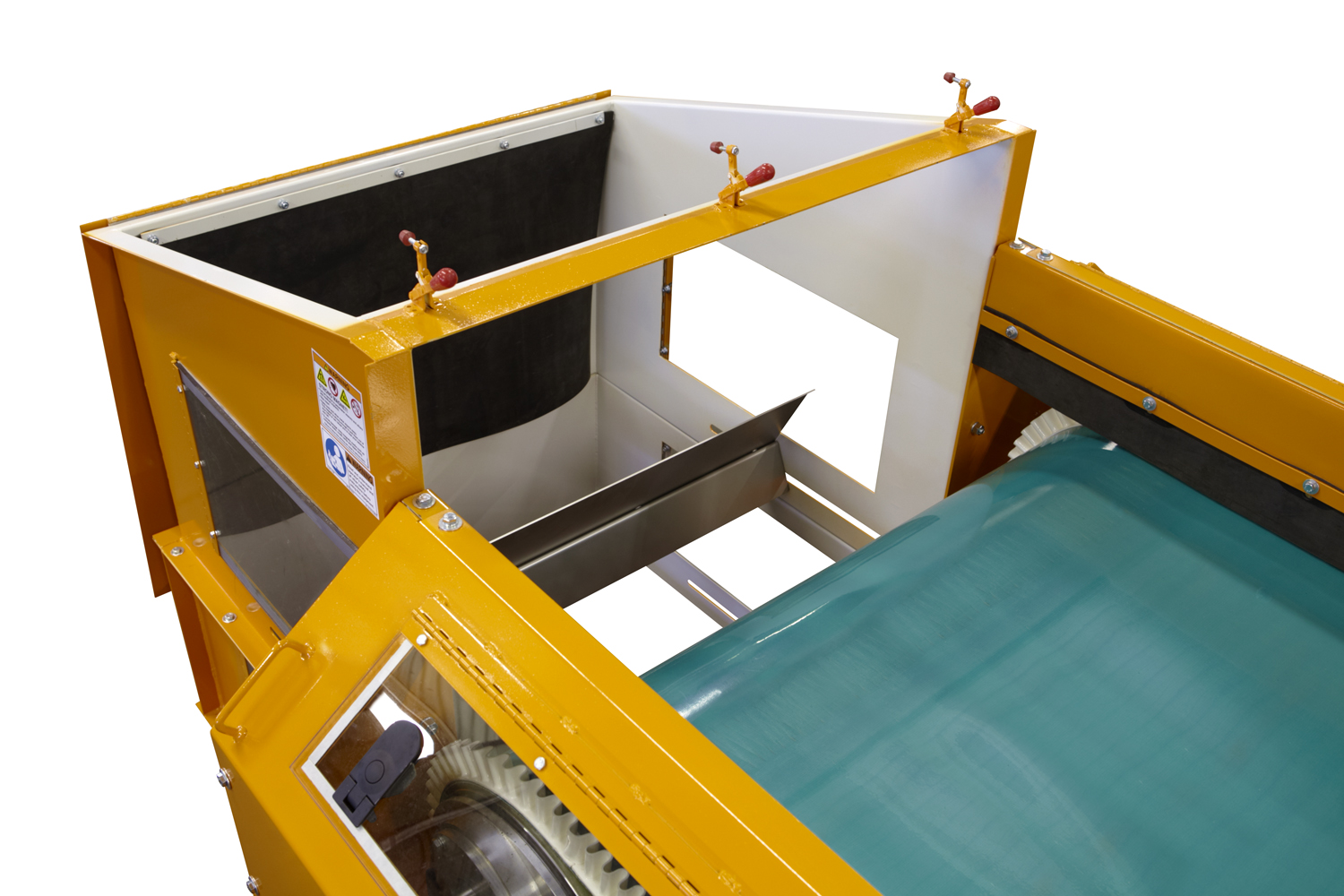

Eriez’ RevX-E® Eddy Current Separators feature an eccentric magnetic rotor for separation of nonferrous metals. The unit is designed with an eccentrically mounted magnetic rotor  within the non-conductive larger diameter shell. The eccentric rotor concentrates its eddy current forces into a zone of separation at the end of the belt. By focusing its field, this design ignores ferrous material in the flow.

The eccentric rotor design reduces long-term wear due to heated ferrous build up.

RevX-E Eccentric Eddy Advantages:

  • Rare Earth rotor produces a powerful focused field
  • Rotor position is adjustable for optimum separation
  • Reduces long-term wear from ferrous build up
  • Compact design requires less space
  • Access panels conveniently located for easy service

Sizes Offered:

  • 1.0M (40") wide
  • 1.2M (48") wide
  • 1.5M (60") wide
  • 2.0M (80") wide

Rotors Offered:

  1. LT2 Rotor Assembly: 8 Pole Rare Earth Eccentric Rotor for coarse (+1") size fractions.
  2. ST22 Rotor Assembly: 22 Pole Rare Earth Eccentric Rotor for +1/4" to -1" size fractions.





Download von Dokumenten: Ausrüstung für die Recyclingindustrie

Download von Dokumenten: Broschüre zu Wirbelstromabscheidern



Für technische Unterstützung bzw weitere Informationen oder im Falle einer Angebotsanfrage, füllen Sie bitte das Kontaktformular aus.
